Attaching coolant hoses to front subframe

Attach all released coolant hoses back to their corresponding holders on the front subframe support.

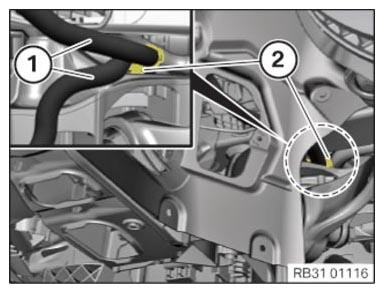

Attach coolant hoses (1) to the brackets (2).

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Perform the steps on the right and left side.

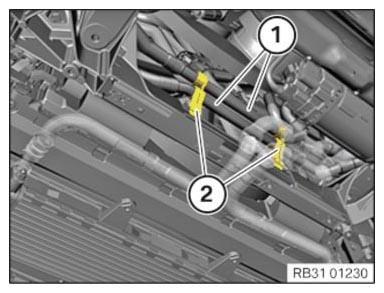

Secure the coolant hoses (1) at the holder (2).

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The following step(s) must be performed if the specified component(s) is/are installed.

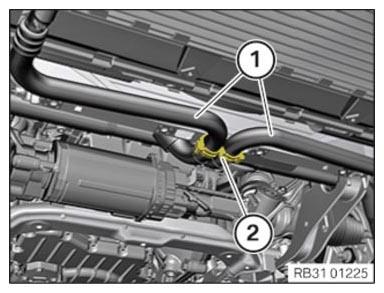

Secure the coolant hoses (1) at the holder (2) to the front subframe.

Courtesy of BMW OF NORTH AMERICA, INC.
