Fuse & Relay Location (8' Series G14/G15/G16 & F91/F92/F93)
>>
Fuse And Relay Location (8' Series G14/G15/G16 & F91/F92/F93)
>>
Z11 Integrated supply module
Z11 Integrated supply module

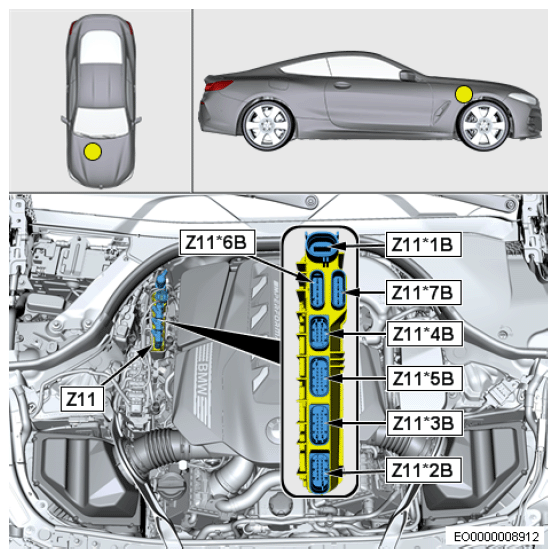

Fig 1: Z11 Integrated Supply Module Fuse/Relay ID's & Location (1 Of 2)
Courtesy of BMW OF NORTH AMERICA, INC.

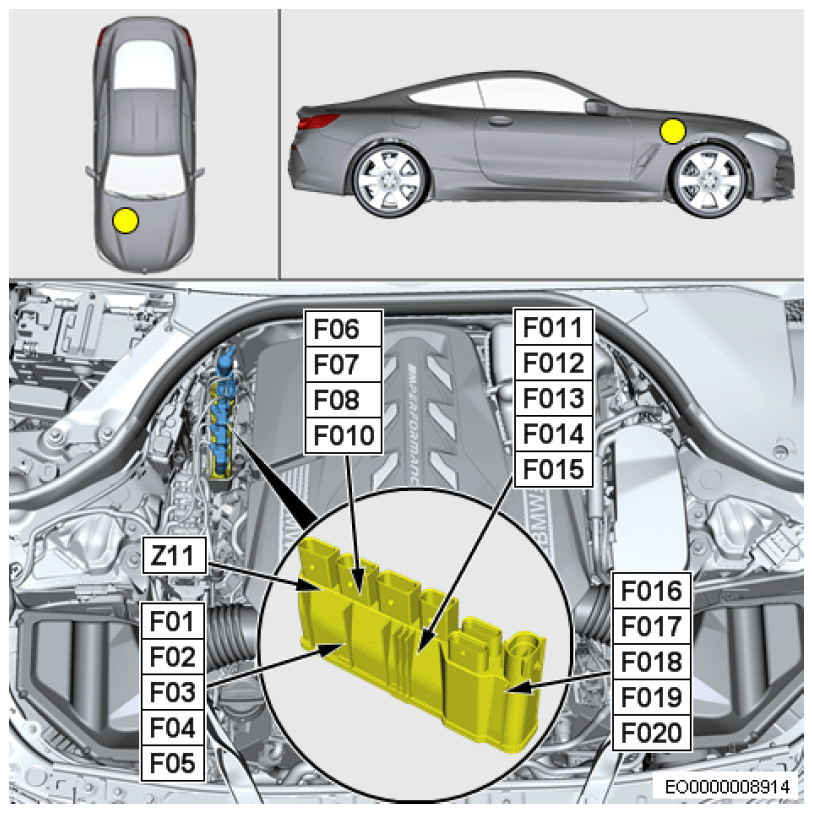

Fig 2: Z11 Integrated Supply Module Fuse/Relay ID's & Location (2 Of 2)
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
