Removing the hands-free microphone left and right
NOTE:
Description is for left component only. Procedure on the right side is identical.
NOTE:
Description is for left component only. Procedure on the right side is identical.
Remove hands-free microphone
- Get the set of special tools 0 493 752 (00 9 329)
ready.

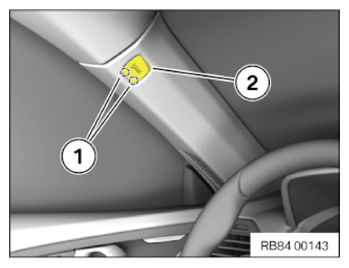

- Release the snap-in lugs (1) with a suitable tool and remove the hands-free microphone (2).
- Unlock plug connection and disconnect.
