Installing rear wheel speed sensor

• Clean the bore for the wheel speed sensor and grease it with lubricating grease.
  CONSUMABLE SPECIFICATION



  Lubricating grease Staburags NBU 12K

  100 g, Tube

  83 23 9 407 810

• Install rear wheel speed sensor.

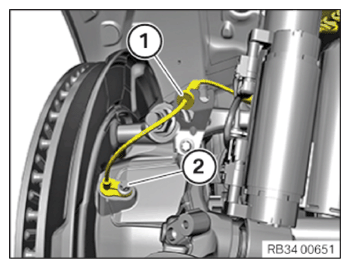

• Replace the screw (2)  .

  Parts:  Screw

• Position and tighten the screw (2)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

  TIGHTENING TORQUES SPECIFICATION



  Rear wheel speed sensor on wheel carrier
  Replace screw.	tightening torque	12 Nm

• Hook the wheel speed sensor cable into the holder (1)  .

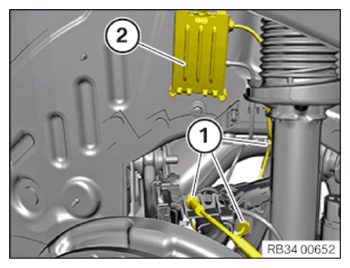

• Hook the wheel speed sensor cable into the holders (1)  .
• Connect plug connection and close housing (2)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

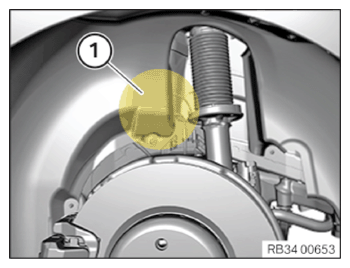

• Install the wheel arch cover in the area (1)  .

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING REAR LEFT OR RIGHT WHEEL .
