Remove front brake hose
WARNING:
Vehicle may slip off the vehicle hoist if the vehicle hoist is handled incorrectly.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- Observe safety instructions on raising the vehicle using a vehicle hoist.
- For additional information see: RAISING THE VEHICLE WITH A VEHICLE LIFT .
NOTE:
TECHNICAL INFORMATION
Before first working on the DSCi brake (integrated brake), the "DSCi" web-based training must be passed successfully.
The "DSCi" web-based training is started in the Learning Management System (TMSi).
Before first working on the DSCi brake (integrated brake), the "DSCi" web-based training must be passed successfully.
The "DSCi" web-based training is started in the Learning Management System (TMSi).
NOTE:
TECHNICAL INFORMATION
Use only BMW-approved brake fluids.
For additional information see: "Fluid Capacities" tab for the selected vehicle.
Use only BMW-approved brake fluids.
For additional information see: "Fluid Capacities" tab for the selected vehicle.
NOTE:
Description is for left component only. Procedure on the right side is identical.
Preliminary work
- Refer to REMOVING THE FRONT LEFT AND RIGHT WHEELS .
- Detach the brake hose (1) from the brake caliper and provide counter support at the knurling (2) as needed.
- Detach the brake hose from the holder (3)
.

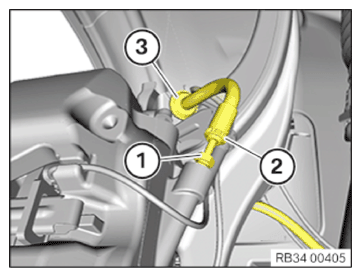

- Detach the brake hose from the holder (1) .
- Unscrew the union screw (2) and use the square shaft (3) for counter support as needed.
