Removing the trim strip on the convertible-top compartment lid
Precondition
Convertible top compartment lid is open.
NOTE:
RISK OF DAMAGE
Careless handling of tools and sharp-edged components.
Scratches, surface damage.
Careless handling of tools and sharp-edged components.
Scratches, surface damage.
- Protect working area.
- Handle tools and components carefully.

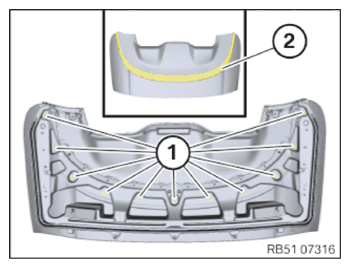

- Loosen nuts (1).
- Guide out and remove trim strip to convertible top compartment lid (2).
