Remove top air duct
Preliminary work
- Refer to REMOVING THE CENTER ENGINE COMPARTMENT COVER .
- Refer to REMOVING CENTER RADIATOR ORNAMENTAL GRILLE .
- Refer to PARTIALLY REMOVING BOTH WHEEL ARCH COVERS IN FRONT .
- Refer to PARTIALLY REMOVING TEMPERATURE SENSOR .
- Refer to REMOVING FRONT BUMPER COVER .
NOTE:
Schematic diagram is for example purposes. Some parts may differ in certain details.

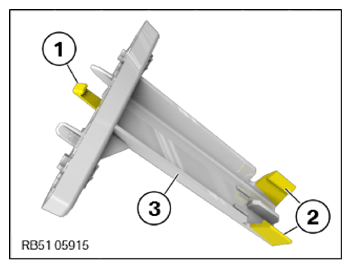

- Loosen screws (1)
and (2)
.

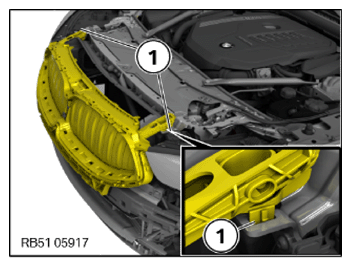

- Loosen top air duct at the detents (1) .
- Slightly lift up top air duct, swivel forwards and remove.
