Installing the left and right A-pillar trim panel
NOTE:
Description is for left component only. Procedure on the right side is identical.
Install A-pillar trim panel
WARNING:
Airbag unit.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- Before working on the airbag, disconnect the negative battery cable from the battery.
- Airbag unit may only be set down with the cushion (airbag itself) facing upwards.
- For additional information see: SAFETY REGULATIONS FOR HANDLING COMPONENTS WITH GAS GENERATORS .
WARNING:
Pyrotechnic components.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- All work on pyrotechnic parts may be carried out by technically experienced and appropriately trained personnel only.
- Replace any damaged part or ones that have been dropped.
- For additional information see: SAFETY REGULATIONS FOR HANDLING COMPONENTS WITH GAS GENERATORS .

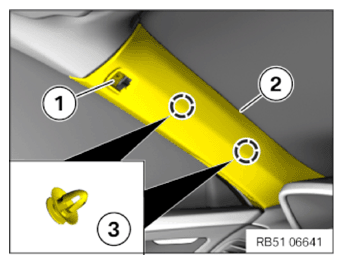

- Check the clips (3) for damage and replace if necessary.
- Insert the A-pillar trim panels (2) and clip in with the clips (3) .
- Tighten down screw (1) .
TIGHTENING TORQUE SPECIFICATION
| A-pillar trim panel to body | ||
|---|---|---|
| Combination clamping screw with ISA | Tightening torque | 2.5 Nm |
Follow-up work
