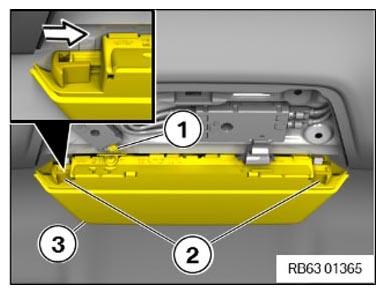

Installing the brake light
- 3. Position the brake light (3) .
- Lock both slides (2) inward.
- Connect plug (1)
.
Check
- Check the clips (1) on the cover of the 3rd brake light (2) for damage, replace if necessary.
- Check the detent (3) on the cover of the auxiliary 3rd brake light (2) for damage, replace if necessary.
Result
» Detent is damaged.
Measure
- Replace the cover of the 3rd brake light (2) .
Parts: Cover of the 3rd Brake lamp
- Put on the cover of the 3rd brake light (1) from underneath.
- Clip in the cover of the 3rd brake light (1) with the clips (3) and the detent (2) .
