Installing the tailgate seal
- Remove sealant residue from the sheet metal flange.
- Clean sheet metal flange.

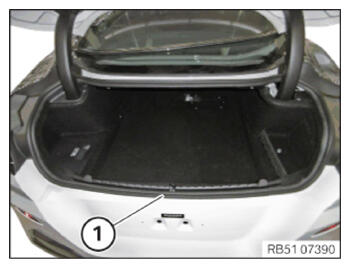

- Replace tailgate seal (1)
.
Parts: Tailgate seal
- Mount tailgate seal (1) , starting from the center at the top.
- Ensure that tailgate seal (1) rests correctly on all the adjacent trim panel components.
Check
- Check the closing function of the trunk lid.
Result
» The trunk lid does not close correctly.
Measure
- Ensure that tailgate seal (1) rests correctly on all the adjacent trim panel components.

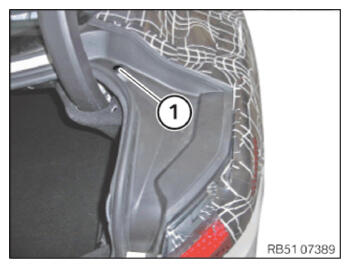

- Guide in and install trim panels (1) on left and right and fasten with a clip.
