Remove rear spoiler
NOTE:
RISK OF DAMAGE
Careless handling of tools and sharp-edged components.
Scratches, surface damage.
Careless handling of tools and sharp-edged components.
Scratches, surface damage.
- Protect working area.
- Handle tools and components carefully.
NOTE:
TECHNICAL INFORMATION
Notes on component bonding using adhesive tape form the basis for these repair instructions and must be observed without fail.
For additional information see: NOTES ON COMPONENT BONDING WITH ADHESIVE TAPE .
Notes on component bonding using adhesive tape form the basis for these repair instructions and must be observed without fail.
For additional information see: NOTES ON COMPONENT BONDING WITH ADHESIVE TAPE .
NOTE:
RISK OF DAMAGE
Mechanical effects.
Paint damage.
Mechanical effects.
Paint damage.
- Mask those working areas at risk with yellow plastic adhesive tape.
- Remove and install heavy or bulky components with the aid of another person/other persons.
- Insert the separating cord (about 50 cm) from the special tool 2 357 248 in the special tools 2 326 501 .

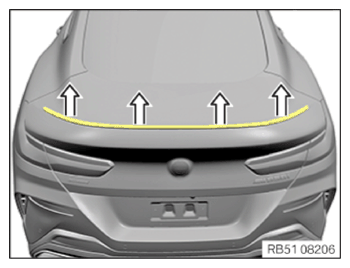

- Carefully insert the separating cord sideways starting from under the rear spoiler (1) .
- Carefully release the rear spoiler (1) with the special tool 2 326 501 with pulling movements from the tailgate and remove it upwards.
- Remove the adhesive residue from the tailgate.
