Installing the front spoiler

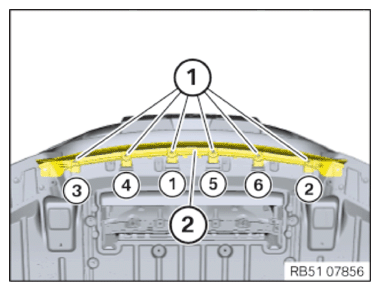

- Mount front spoiler (2) .
- Tighten screws (1) in the 1 - 2 - 3 - 4 - 5 - 6 order.
NOTE:
Perform the steps on the right and left side.

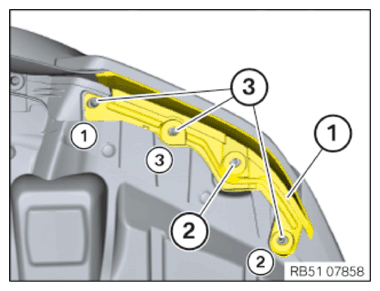

- Mount front spoiler (1) .
- Install shorter screw (2) and tighten down.
TIGHTENING TORQUE SPECIFICATION
| Front spoiler to bumper cover | ||
|---|---|---|
| Oval-head screw | tightening torque | 3.0 Nm |
- Tighten slightly longer screws (3) in the 1 - 2 - 3 order.
TIGHTENING TORQUE SPECIFICATION
| Front spoiler to bumper cover | ||
|---|---|---|
| Oval-head screw | tightening torque | 3.0 Nm |
