Remove left front-end strut
NOTE:
TECHNICAL INFORMATION
Driving without the strut brace/front-end strut or tension strut is not permitted.
Driving without the strut brace/front-end strut or tension strut is not permitted.
NOTE:
Description is for left component only. Procedure on the right side is identical.
Preliminary work
- Refer to RELEASING LEFT FRONT-END STRUT .
- Refer to REMOVING LEFT INTAKE SILENCER HOUSING .

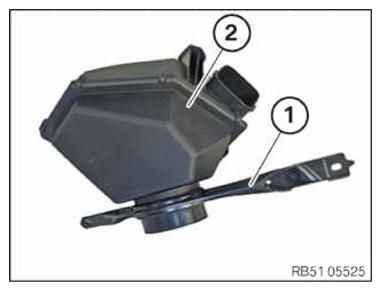

- Remove the front-end strut (1) from the intake filter housing (2) .
