51 64 Front Panel, Front End
>>
51 64 035 Removing and installing/replacing the upper section cross connection
>>
Replacement: Cross connection, top
Replacement: Cross connection, top

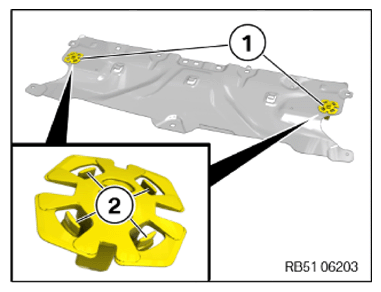

Release both holders
(1)
with the detents
(2)
from the top cross connection and remove.
Courtesy of BMW OF NORTH AMERICA, INC.
Clip both brackets
(1)
with the detents
(2)
into the new top cross connection.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
