Installing the tailgate trim panel

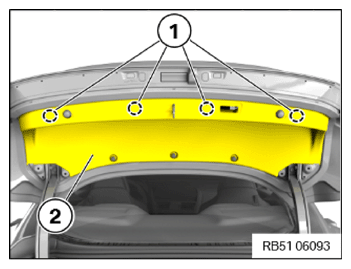

• Check the clips (1)  tailgate trim panel (2)  for damage and replace if necessary.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Position the tailgate trim panel (2)  and secure with expanding rivets (1)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

• Clip in the tailgate trim panel (2)  with the clips (1)  .

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to ATTACHING THE TRIM PANEL FOR THE TAILGATE HINGE ON THE LEFT AND RIGHT. .
• Refer to INSTALLING THE POWER TAILGATE SWITCH .
• Refer to INSTALLING TRUNK COMPARTMENT LIGHT ON TRUNK LID .
