51 48 Engine Compartment Insulation
>>
51 48 001 Removing and installing/replacing insulation lining on engine hood/hood
>>
Installing the damping layer on the hood
Installing the damping layer on the hood

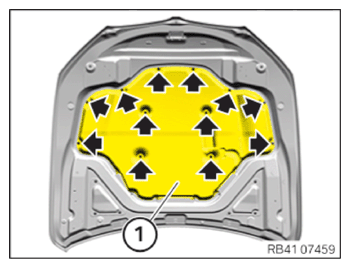

Correctly position the damping layer
(1)
and mount all clips (arrows).
