Installing loading edge trim

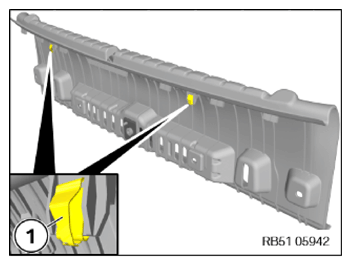

- Check clamps (1)
for damage and, if necessary, replace them.

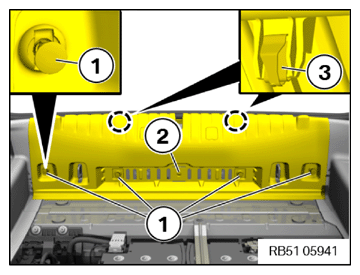

- Feed the loading edge trim under the sealing lip of the trunk lid seal.
- Fit the trim of the loading edge at the detents (3) and clip it in to the bottom.
- Tighten down screw (2) .
TIGHTENING TORQUE SPECIFICATION
| Loading edge trim to body | ||
|---|---|---|
| Oval-head screw with collar M4 | Tightening torque | 3 Nm |
- Secure expanding rivet (1) .

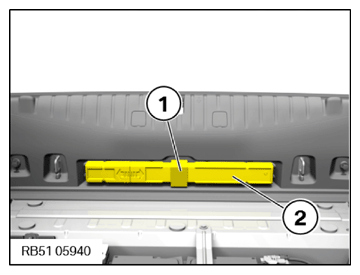

- Insert warning triangle (2) and fix it with hook and loop tape (1) .
Follow-up work
