Installing the rear module bracket

Check

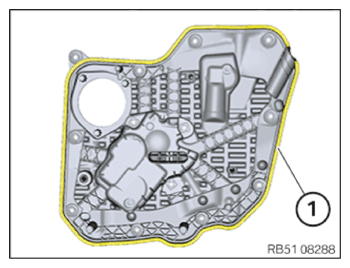

• Check the seal (1)  on the rear module bracket for damage.

Courtesy of BMW OF NORTH AMERICA, INC.

Result

» Seal (1)  on the rear module bracket is damaged.

Measure

• Replace the rear module bracket.

• Check that bolt (1)  has firm fit, tighten if necessary.

Courtesy of BMW OF NORTH AMERICA, INC.

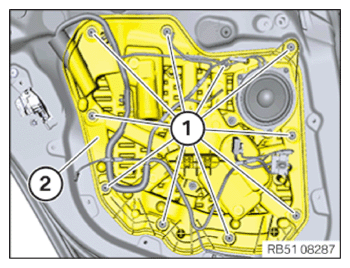

• Install the rear module bracket (2)  and tighten screws (1)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

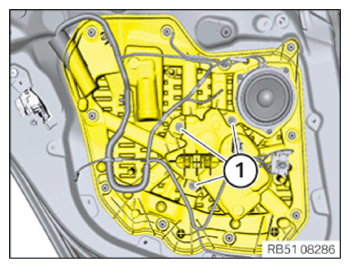

• Tighten the nuts (1)  with the special tool 0 496 726 (51 0 400)  .
• Clip the door wiring harness to the back of the module bracket.
• Connect and lock the plug of the door wiring harness to the back of the module bracket.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE LOUDSPEAKER ON THE REAR DOOR .
• Refer to INSTALLING REAR DOOR TRIM PANEL .
