Installing the front module bracket

Check

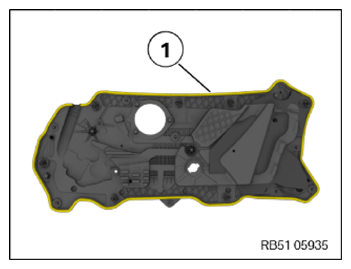

• Check seal (1)  of the front module bracket for damage.

Courtesy of BMW OF NORTH AMERICA, INC.

Result

» The seal (1)  of the front module bracket is damaged.

Measure

• Replace the front module bracket.

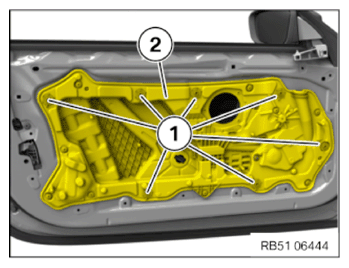

• Install the front module bracket (2)  .
• Lock the bayonet closures (1)  by rotating them.

  Courtesy of BMW OF NORTH AMERICA, INC.

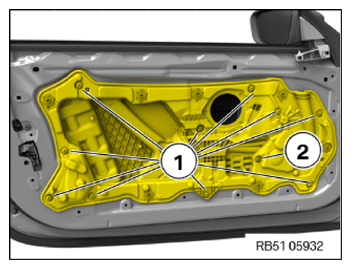

• Tighten down screws (1)  .

• Tighten nut (2)  .

Courtesy of BMW OF NORTH AMERICA, INC.

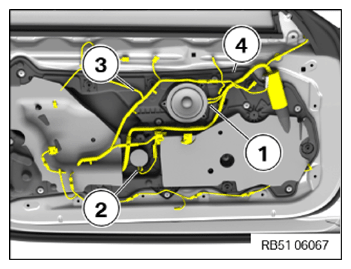

• Clip in the detents of the door wiring harness (3)  on the front module bracket (4)  .
• Connect connectors (1)  and (2)  and lock.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING FRONT DOOR TRIM PANEL .
• Refer to ACTIVATING VEHICLE ELECTRICAL SYSTEM .
