Removing the through-loading system trim panel

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

Precondition

Rear seat backrest is folded.
NOTE: Description is for left component only. Procedure on the right side is identical.

Preliminary work
Refer to REMOVING LUGGAGE COMPARTMENT FLOOR COVERING .
Refer to REMOVING THE LOADING EDGE TRIM .
Refer to REMOVING THE UPPER LUGGAGE COMPARTMENT TRIM PANELS .
Refer to REMOVING LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL .

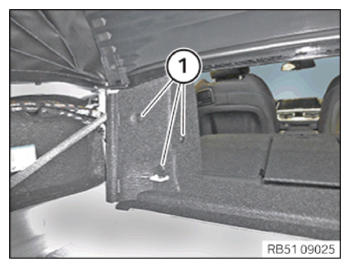

Release the expanding rivet (1).

Courtesy of BMW OF NORTH AMERICA, INC.

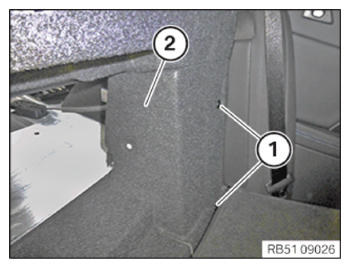

Release the expanding rivet (1).
Feed out and remove the trim panel (2).

Courtesy of BMW OF NORTH AMERICA, INC.
