Securing the oil sump acoustic cover

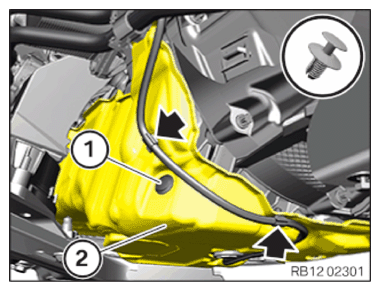

• Position the acoustic cover (2)  .
• Fasten expanding rivet (1)  .
• Secure the clamps (arrows).

  Courtesy of BMW OF NORTH AMERICA, INC.

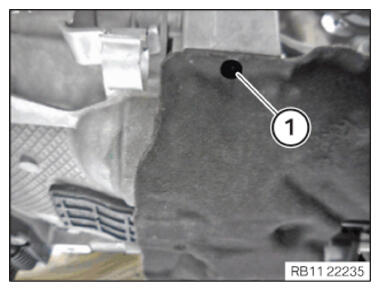

• Check the christmas tree clip (1)  for damage, replace if necessary.

  Parts:  Fir tree clip

  Courtesy of BMW OF NORTH AMERICA, INC.

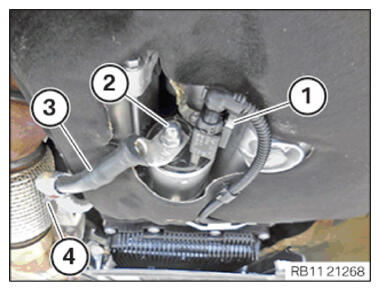

• Connect and lock the connector (1)  .
• Make sure the connector (1)  engages audibly.
• Insert and install the positive battery cable (3)  .
• Secure positive battery cable (3)  at the clamp (4)  .
• Tighten the nut (2)  hand-tight.

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: Improper routing of the positive battery cable.
Risk of short circuits!

• Route the positive battery cable without abrasions and do not trap.

Courtesy of BMW OF NORTH AMERICA, INC.

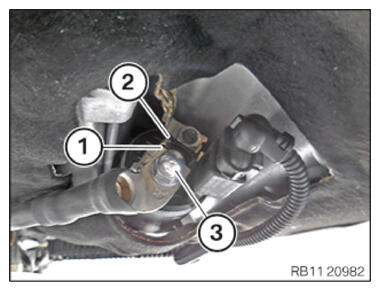

• Attach the positive battery cable (1) correctly  to antitwist lock (2)  .
• Tighten nut (3)  .

TIGHTENING TORQUE SPECIFICATIONS

Battery positive lead to starter
M8	Tightening torque	13.5 Nm
