Removing both tail lights from the trunk lid
NOTE:
Description is for left component only. Procedure on the right side is identical.

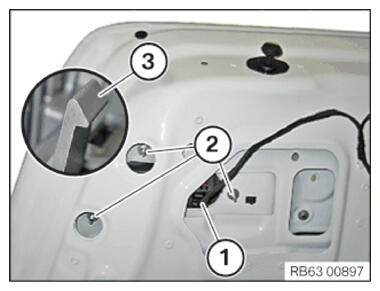

Remove the tail light on the left of the trunk lid
- Unlock and disconnect connector (1)
.
- Loosen nuts (2)
.
- Loosen the detents (3)
.
- Remove the tail light towards rear.
 Courtesy of BMW OF NORTH AMERICA, INC.
|
