Installing starter motor
Precondition
Acoustic cover of the oil pan has been removed.

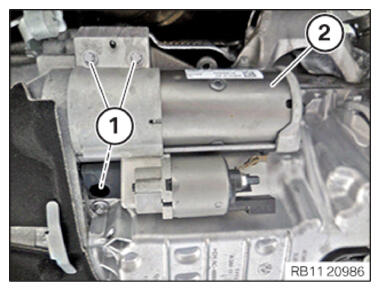

- Insert and install the starter motor (2)
.
- Tighten down screws (1)
.
TIGHTENING TORQUE SPECIFICATIONS
| Starter motor to crankcase |
| M8x60 |
Tightening torque |
19 Nm |
 Courtesy of BMW OF NORTH AMERICA, INC.
|
