Detach the alternator and set it aside

Precondition

Battery ground leads are disconnected.

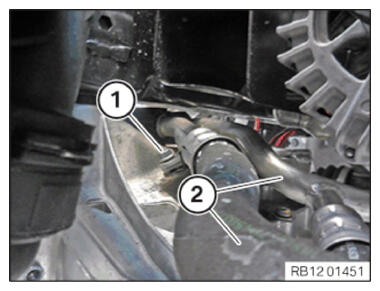

• Loosen nut (1)  .
• Disconnect the engine oil lines (2)  below the alternator and set them aside.

  Do not  open the engine oil lines or drain the motor oil.

  Courtesy of BMW OF NORTH AMERICA, INC.

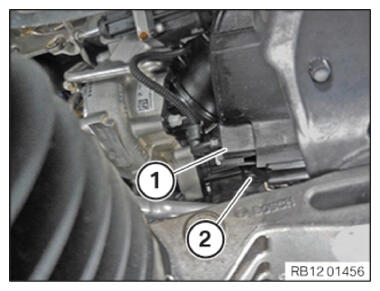

• Unlock and disconnect the connector (1)  from the alternator.
• Detach the cover (1)  and release the nut below it.
• Disconnect positive battery cable from alternator.

  Courtesy of BMW OF NORTH AMERICA, INC.

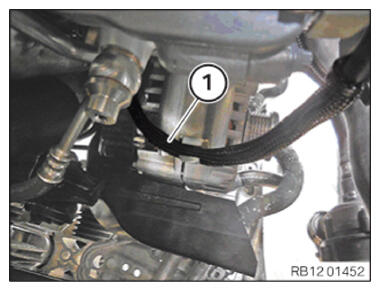

• Detach positive battery cable (1)  from holder.

  Courtesy of BMW OF NORTH AMERICA, INC.

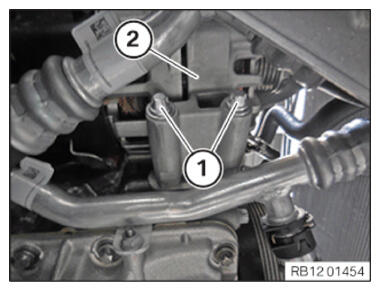

• Unscrew the bolts (1)  at the top on the alternator.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Cover the radiator (for example with panel or board) and protect from damage.

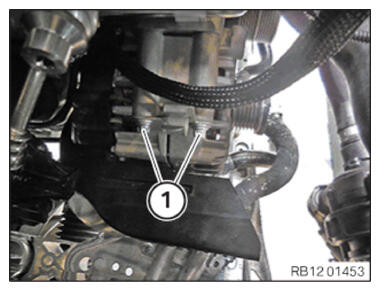

• Unscrew the bolts (1)  at the bottom on the alternator.
• Pull the alternator (2)  slightly forwards and set it aside.
• Protect the alternator (2)  from falling.

Courtesy of BMW OF NORTH AMERICA, INC.
