Check the gap dimension of the hood

NOTE: TECHNICAL INFORMATION
The gap dimensions form the basis for these repair instructions and must be observed without fail.
For additional information see: BODY GAP DIMENSIONS .

Check

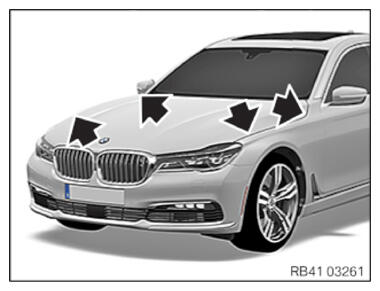

Check gap dimensions between the hood and the side panels.

Courtesy of BMW OF NORTH AMERICA, INC.

Desired state

Gap dimension does not correspond to the secondary document BODY GAP DIMENSIONS . 41 00... gap dimension body.

Result

» Gap dimension does not correspond to the secondary document BODY GAP DIMENSIONS . 41 00... gap dimension body.

Measure

Adjusting hood.
