Install both seat belt finisher strip elements

NOTE: Description is for left component only. Procedure on the right side is identical.

Install the seat belt finisher strip

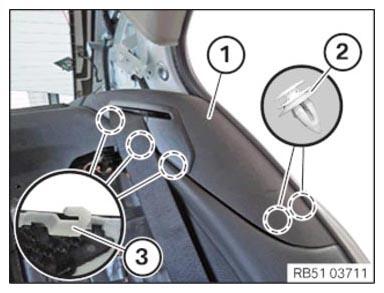

Install the seat belt finisher strip (1) and in this process, insert the end fitting.
Insert the seat belt finisher strip (1) at the rear into the guides (3).
Clip in the seat belt finisher strip (1) in the clips (2).
Make sure that seat belt finisher strip (1) is correctly fitted against the edge protection.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: TECHNICAL INFORMATION
Component is encoded against incorrect assembly.

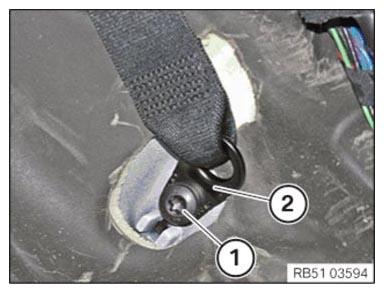

Mount end fitting (2).
Replace the screw (1).
Parts: Screw
Tighten down screw (1).

TIGHTENING TORQUES SPECIFICATION

End lining to body
M10 Replace screw.	tightening torque	42 Nm
