Install both C-pillar trim panels

Installing C-pillar trim panel

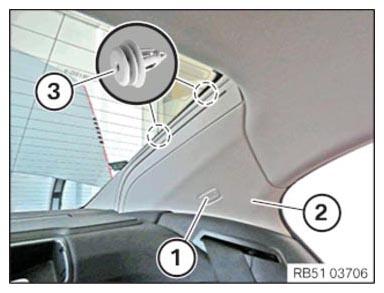

• Guide C pillar trim panel (1) with the guide rail (2) into the guide pin (3) of the roller sunblind and guide in the storage shelf.

  Courtesy of BMW OF NORTH AMERICA, INC.

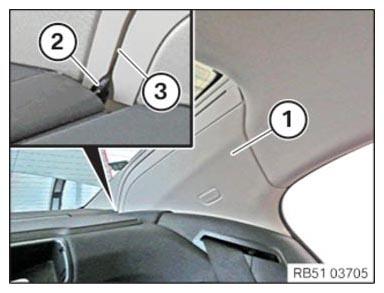

• Engage the C-pillar trim panel (2) in the clips (3).
• Tighten down screw.
  TIGHTENING TORQUES SPECIFICATION



  Body pillar trim
  screw	tightening torque	2.5 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Mount the cover (1).
