Installing the oil feed line for the exhaust turbocharger (engine encapsulation removed)

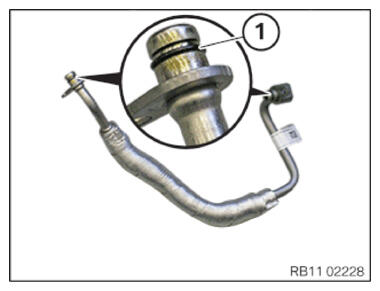

Replace the O-rings (1) .
Parts: O-rings

Courtesy of BMW OF NORTH AMERICA, INC.

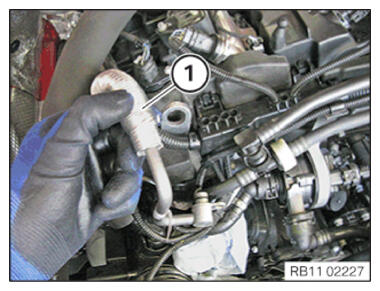

Guide in oil feed line (1) .

Courtesy of BMW OF NORTH AMERICA, INC.

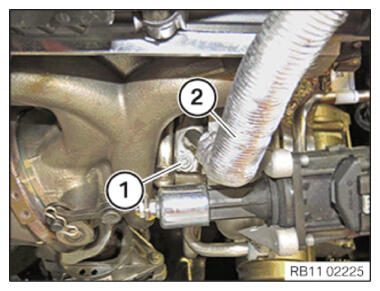

Position oil feed line (2) on exhaust turbocharger.

Tighten down screw (1) .

TIGHTENING TORQUE SPECIFICATIONS

Oil feed line to exhaust turbocharger
M6 x 12	Replace O-ring	8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
