Installing the catalytic converter for cylinders 1 to 6 (front axle removed)

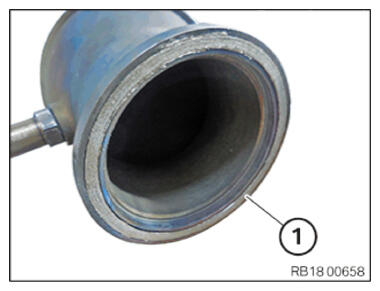

Replace seal (1) on catalytic converter.
Parts: Gasket

Courtesy of BMW OF NORTH AMERICA, INC.
If necessary, replace clamp (1) .
Parts: cl
Feed in catalytic converter and secure with the clamp (1) .

Tighten clamp.

TIGHTENING TORQUE SPECIFICATIONS

Catalytic converter to exhaust turbocharger
cl Replace clamp after disassembly.	Tightening torque	14 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

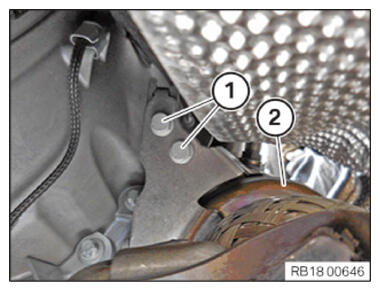

Tighten bolts (1) of catalytic converter (2) .

TIGHTENING TORQUE SPECIFICATIONS

Catalytic converter to holder
M8 Replace screws.	Tightening torque	28 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

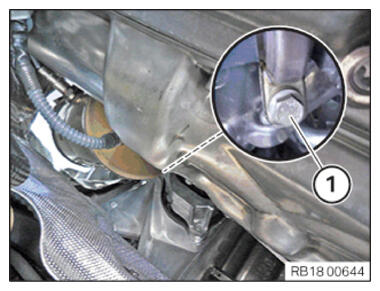

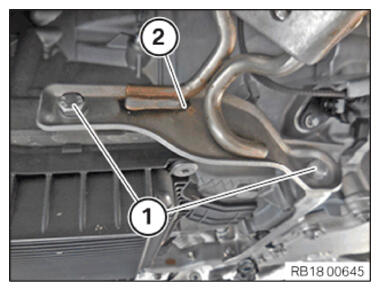

Tighten down screws (1) .

TIGHTENING TORQUE SPECIFICATIONS

Holder, catalytic conv. to transmission
M8x16 Replace screws.	Tightening torque	21 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

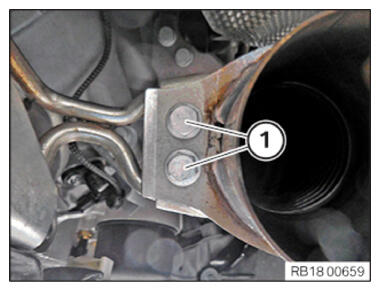

Tighten down screws (1) .

TIGHTENING TORQUE SPECIFICATIONS

Catalytic converter to holder
M8 Replace screws.	Tightening torque	28 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
