Install the front heat protection

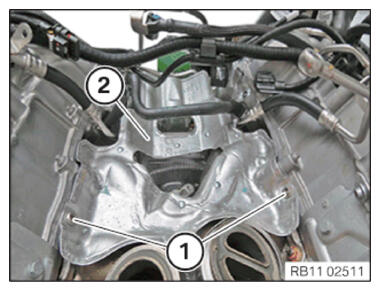

Install the front heat protection
Install heat shield
(2)
.
Tighten the screws
(1)
.
TIGHTENING TORQUE SPECIFICATIONS
Heat protection plate
M6x16
tightening torque
10 Nm
Courtesy of BMW OF NORTH AMERICA, INC.
