Install right heat shield

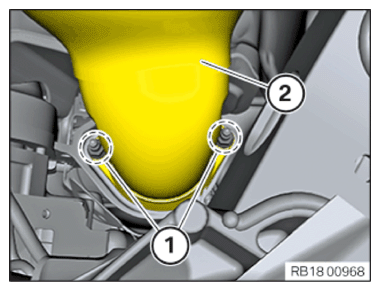

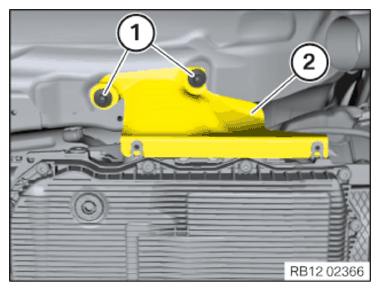

Thread in right heat shield (2) and connect with the other heat shield.

Tighten the screw (1) at the top of heat shield (2) .

TIGHTENING TORQUE SPECIFICATIONS

Heat protection plate
M6x16	tightening torque	10 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Connect the heat shield (2) with the heat shield below.

Tighten the screw (1) at the bottom of heat shield (2) .

TIGHTENING TORQUE SPECIFICATIONS

Heat protection plate
M6x16	tightening torque	10 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

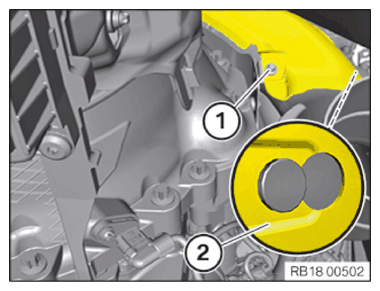

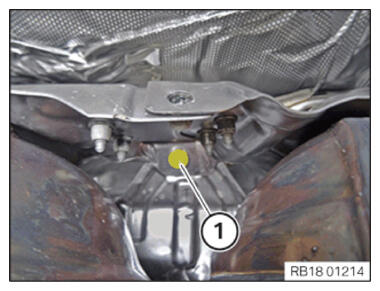

Tighten down screw (1) .

Courtesy of BMW OF NORTH AMERICA, INC.
Version with S1 DEA
Feed in the pressure line (1) upwards.

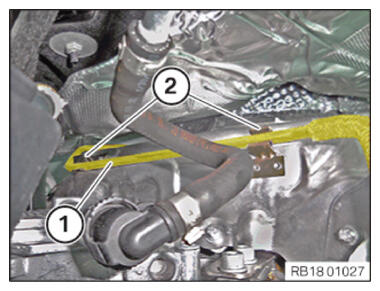

Clip the pressure line (1) into the retaining clips (2) .

Courtesy of BMW OF NORTH AMERICA, INC.

Version with S1 DEA:

Feed in the pressure line (1) with gasoline particulate sensor upwards and position it.

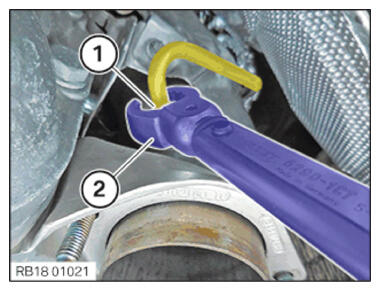

Tighten the pressure line (1) with an open ring wrench (2) .

TIGHTENING TORQUE SPECIFICATIONS

Pressure line to catalytic converter near engine
Pressure line	Tightening torque	20 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Installing the gasoline particulate filter of cylinders 1 to 4

NOTE: RISK OF DAMAGE
Damage to the gasoline particulate filter.
Forcibly removing, installing or dropping the gasoline particulate filter down will damage it.

Remove and install the gasoline particulate filter without damaging it and without applying external force.
Avoid impacts/knocks to the gasoline particulate filter (e.g. by tools, falling down, hard contact with base).

NOTE: TECHNICAL INFORMATION
After exchanging the gasoline particulate filter, and before delivering the vehicle to the customer, the registration of the gasoline particulate filter must be carried out!

Replace gasket (1) .
Parts : Seal

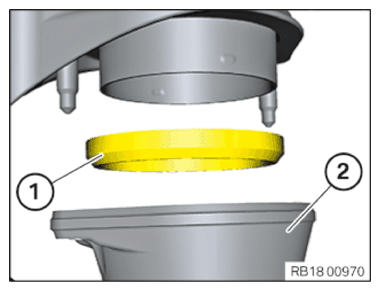

Position seal (1) on the gasoline particulate filter (2) .

Feed in gasoline particulate filter (2) and position it.

Courtesy of BMW OF NORTH AMERICA, INC.

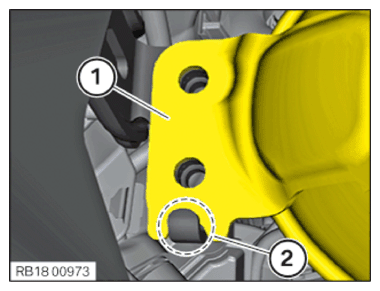

Attach gasoline particulate filter (1) to lug (2) and secure it against falling down.

Courtesy of BMW OF NORTH AMERICA, INC.

Replace nuts (1) .
Parts : Nuts

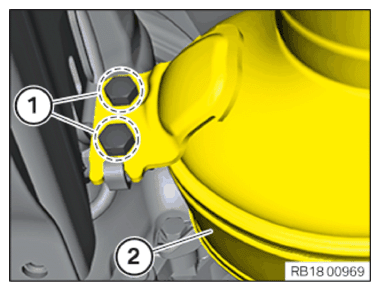

Tighten nuts (1) on the gasoline particulate filter (2) .

TIGHTENING TORQUE SPECIFICATIONS

Gasoline particulate filter or catalytic converter near engine to the bottom of catalytic converter, snug torque
Nut M8	Tightening torque	17 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten screws (1) on the gasoline particulate filter (2).

TIGHTENING TORQUE SPECIFICATIONS

Gasoline particulate filter or catalytic converter near engine to the bottom of the transmission, snug torque
M8x20 screw	Tightening torque	8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten nuts (1) on the gasoline particulate filter (2).

TIGHTENING TORQUE SPECIFICATIONS

Gasoline particulate filter or catalytic converter near engine to the bottom of the catalytic converter, tightening torque
Nut M8	Tightening torque	28 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten screws (1) on the gasoline particulate filter (2).

TIGHTENING TORQUE SPECIFICATIONS

Gasoline particulate filter or catalytic converter near engine to the bottom of the transmission, tightening torque
M8x20 screw	Tightening torque	19 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

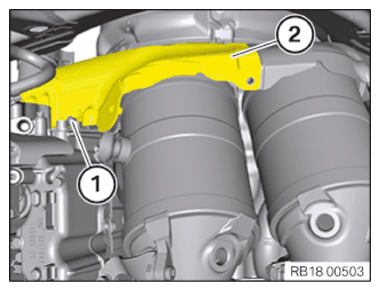

Install heat shield (2).

Tighten nuts (1).

TIGHTENING TORQUE SPECIFICATIONS

Heat shield at tunnel
Nut	tightening torque	2.5 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Version A:

Position stiffening plate (1).

Replace screws (2).

Parts : Screws

Tighten down screws (2).

TIGHTENING TORQUE SPECIFICATIONS

Thrust field to front axle support
M8 Replace screws.	Joining torque	25 Nm
	Angle of rotation	70°

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten down screws (3).

TIGHTENING TORQUE SPECIFICATIONS

Cover, steering unit
screw	Tightening torque	3 Nm

Tighten down screws (4).

TIGHTENING TORQUE SPECIFICATIONS

Underbody protection
screw	Tightening torque	3 Nm

Version B:

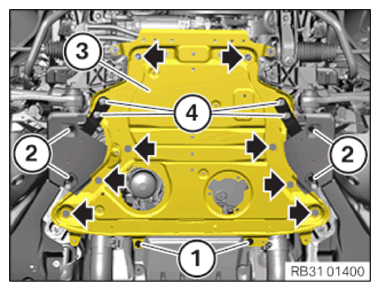

Insert stiffening plate (3) and position.

Replace the bolts (arrows).

Parts : Screws

Tighten screws (arrows).

TIGHTENING TORQUE SPECIFICATIONS

Thrust field to front axle support
M8 Replace screws.	Joining torque	25 Nm
	Angle of rotation	70°

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten down screws (2).

TIGHTENING TORQUE SPECIFICATIONS

Cover, steering unit
screw	Tightening torque	3 Nm

Tighten down screws (1).

TIGHTENING TORQUE SPECIFICATIONS

Underbody protection
screw	Tightening torque	3 Nm

Replace screws (4).
Parts : Screws
Tighten the screws (4).

Version A:

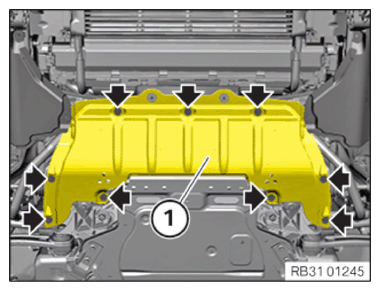

Insert steering gear aggregate protective plate (1).

Tighten screws (arrows).

TIGHTENING TORQUE SPECIFICATIONS

Underbody protection
screw	Tightening torque	3 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Version B:

Replace screws (2).

Parts : Screws

Position the front stiffening plate (1).

Tighten down screws (2).

TIGHTENING TORQUE SPECIFICATIONS

Thrust field to front axle support
M8 Replace screws.	Joining torque	25 Nm
	Angle of rotation	70°

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten down screws (3).

TIGHTENING TORQUE SPECIFICATIONS

Cover, steering unit
screw	Tightening torque	3 Nm

NOTE: TECHNICAL INFORMATION
Different variants may be installed depending on the vehicle equipment.

Version A:

Insert and position the front stiffening plate (1).

Replace screws (2).

Parts : Screws

Tighten down screws (2).

TIGHTENING TORQUE SPECIFICATIONS

Thrust field to front axle support
M8 Replace screws.	Joining torque	25 Nm
	Angle of rotation	70°

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten down screws (3).

TIGHTENING TORQUE SPECIFICATIONS

Cover, steering unit
screw	Tightening torque	3 Nm

Version B:

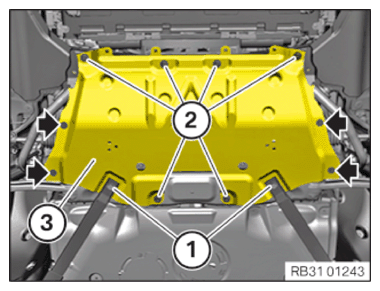

Feed in and position the front stiffening plate (3).

Replace screws (2).

Parts : Screws

Tighten down screws (2).

TIGHTENING TORQUE SPECIFICATIONS

Thrust field to front axle support
M8 Replace screws.	Joining torque	25 Nm
	Angle of rotation	70°

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten screws (arrows).

TIGHTENING TORQUE SPECIFICATIONS

Cover, steering unit
screw	Tightening torque	3 Nm

Tighten the screws (1).

Version C:

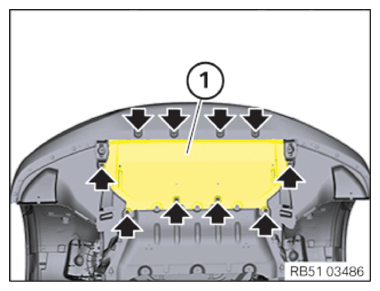

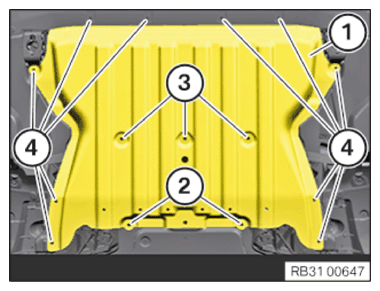

Guide in the underbody protection (1) of the steering gear and position it.

Tighten screws (arrows).

TIGHTENING TORQUE SPECIFICATIONS

Underbody protection
screw	Tightening torque	3 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The following step(s) must be performed if the listed component(s) is/are installed.

NOTE: To provide a better overview: Schematic diagram with partially hidden components.

Version A:

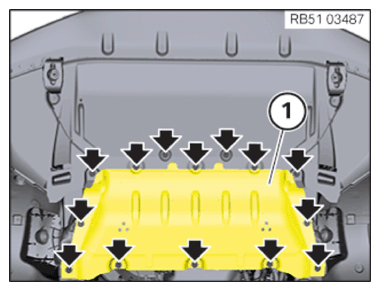

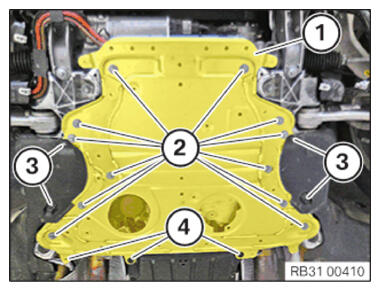

Insert the front underbody protection (1).

Tighten screws (arrows).

TIGHTENING TORQUE SPECIFICATIONS

Underbody protection
screw	Tightening torque	3 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The following step(s) must be performed if the listed component(s) is/are installed.

Version B:

Replace screws (2).

Parts : Screws

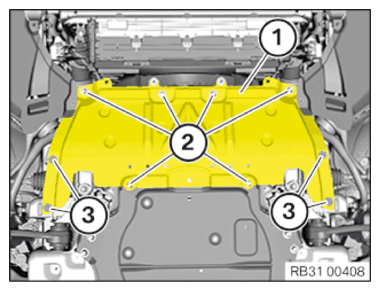

Position stiffening plate (1).

Tighten down screws (2).

Courtesy of BMW OF NORTH AMERICA, INC.

TIGHTENING TORQUE SPECIFICATIONS

Thrust field to front axle support
M8 Replace screws.	Joining torque	25 Nm
	Angle of rotation	70°

Tighten down screws (3).

TIGHTENING TORQUE SPECIFICATIONS

Thrust field to holder
M6	Tightening torque	2.3 Nm

Tighten down screws (4).

TIGHTENING TORQUE SPECIFICATIONS

Underbody protection
screw	Tightening torque	3 Nm
