Remove fuel filler pipe
Precondition
- Fuel tank drained.
WARNING:
High-voltage system.
The high-voltage system operates on the basis of hazardous, electrical voltage and high currents. Mortal hazard through electric shock!
The high-voltage system operates on the basis of hazardous, electrical voltage and high currents. Mortal hazard through electric shock!
- All work on the high-voltage system may only be carried out by specially trained and technically experienced personnel.
- For additional information see:
- For additional information see:
NOTE:
TECHNICAL INFORMATION
Observe the instructions for draining and filling the fuel tank.
For additional information see: 16 00 005 Drawing off and topping up fuel from fuel tank
Observe the instructions for draining and filling the fuel tank.
For additional information see: 16 00 005 Drawing off and topping up fuel from fuel tank
Preliminary work
- Refer to VENTILATE THE FUEL TANK .
- Refer to REMOVING THE REAR RIGHT WHEEL .
- Refer to REMOVING REAR WHEEL ARCH COVER .

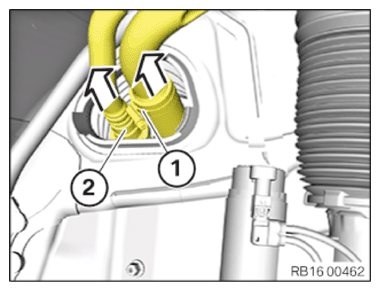

- Loosen hose clamp (1) .
- Detach front rubber hose from the fuel tank in arrow direction.
- Unlock and detach snap fastener (2)
.

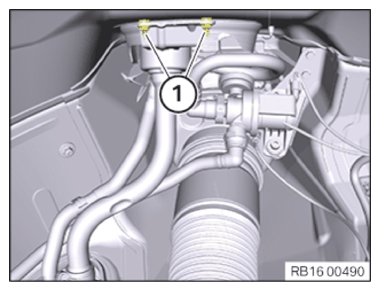

- Loosen nuts (1)
.

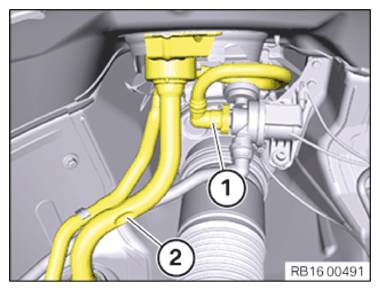

- Unlock and detach the snap fastener (1) .
- Remove fuel filler pipe (2) .
