11 36 Variable Camshaft Timing Control System (VANOS)
>>
11 36 047 Removing and installing both adjusters, left (M760i xDrive 2017-2022)
>>
Removing intake adjuster at cylinder 7 to 12
Removing intake adjuster at cylinder 7 to 12

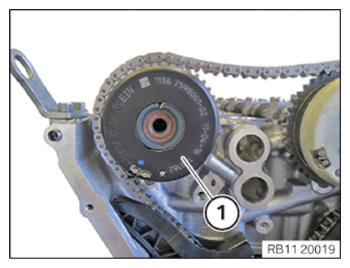

Remove the intake adjuster
(1)
from the camshaft.
(1)
Remove the timing chain from the intake adjuster.
Place intake adjuster (1) neatly in special tool
0 495 105 (11 4 480)
.
