Engine - Variable Camshaft Timing Control System (1 Of 5) - Repair (G12)
>>
11 36 Variable Camshaft Timing Control System (VANOS)
>>
11 36 126 Remove and install/replace the exhaust VANOS central valve (if necessary on the right) (740e xDrive PHEV 2017-2019)
>>
Remove VANOS central valve of the exhaust side
Remove VANOS central valve of the exhaust side

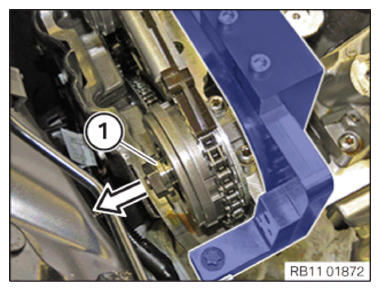

Remove VANOS central valve
(1)
of the exhaust side.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
