Installing the vacuum pump

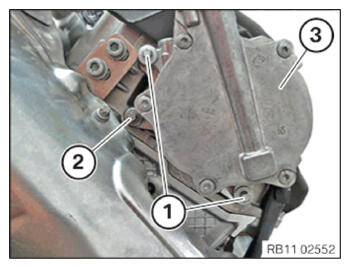

- Mount vacuum pump (3).
- Tighten the screws (1).
- Tighten down screw (2).
TIGHTENING TORQUE SPECIFICATIONS
| Vacuum pump to cylinder head 1-4 | ||
|---|---|---|
| M6x25 and M6x40 | Tightening torque | 10 Nm |
Follow-up work
- Refer to INSTALLING INTAKE FILTER HOUSING .
- Refer to INSTALLING ACOUSTIC COVER .
