Installing the right Lambda oxygen sensor

NOTE: TECHNICAL INFORMATION
Grease the threads of new oxygen sensors thinly and evenly.
For oxygen sensors that are reused, the following should be observed:
Thinly and evenly grease the oxygen sensor on the thread only. Do not clean the part of the oxygen sensor that does not protrude into the exhaust line (sensor ceramics) and do not grease.
For additional information see: OVERVIEW OF CONSUMABLES (BMW PARTS CATALOGUE) .

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: TECHNICAL INFORMATION
For additional information see: OVERVIEW OF CONSUMABLES (BMW PARTS CATALOGUE) .

(1) = Thread
(2) = Sensor ceramics
Prepare tools:

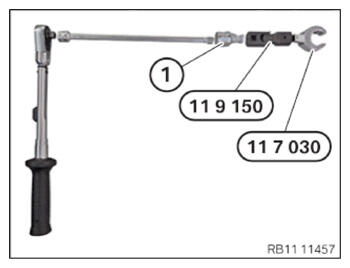

Join the swiveling extension (1), the special tool 0 493 751 (11 9 150) and 0 491 075 (11 7 030).

Courtesy of BMW OF NORTH AMERICA, INC.
Screw in the Lambda oxygen sensor (1).

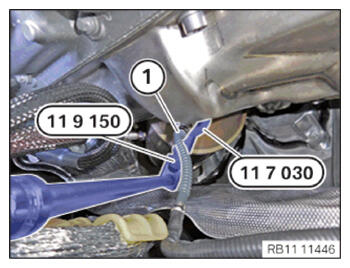

Tighten the Lambda oxygen sensor (1) with the special tools 0 493 751 (11 9 150) and 0 491 075 (11 7 030).

TIGHTENING TORQUE SPECIFICATIONS

Lambda oxygen sensor on catalytic converter
M18X1.5	tightening torque	50 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

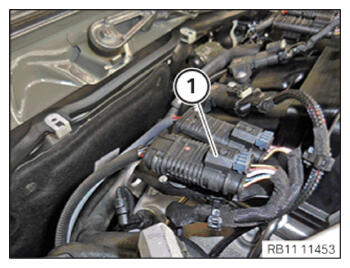

Connect connector (1) and clip in on carrier plate.

Courtesy of BMW OF NORTH AMERICA, INC.

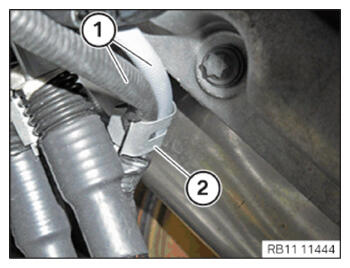

Attach cable (1) to the clamp (2).

Courtesy of BMW OF NORTH AMERICA, INC.
Install new cable tie.
Parts: Cable tie

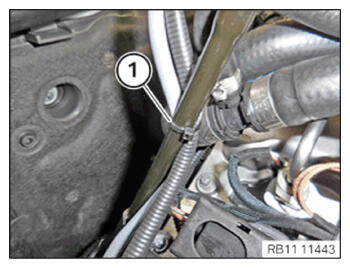

Secure cable tie (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING THE RIGHT-HAND CHARGE AIR PIPE .
Refer to INSTALLING TOP RIGHT CLEAN AIR PIPE .
Refer to INSTALLING THE RIGHT THROTTLE BODY .
Refer to INSTALLING THE CENTER COWL UPPER PART .
Refer to INSTALLING THE FRONT HOOD SEAL AT THE REAR .
Refer to INSTALLING TENSION STRUT ON SHOCK TOWER .
Refer to INSTALLING WINDSHIELD PANEL COVER .
Refer to INSTALLING THE COVER OF THE ENGINE COMPARTMENT ON THE REAR LEFT .
Refer to INSTALLING THE REAR RIGHT ENGINE COMPARTMENT COVER .
Refer to INSTALLING RIGHT INTAKE SILENCER HOUSING .
Refer to INSTALLING ACOUSTIC COVER .
