Remove left oxygen control sensor
Preliminary work
- Refer to REMOVING THE ACOUSTIC COVER .
- Unlock plug connection and disconnect.
- Unclip the oxygen sensor cable at the retaining clips.

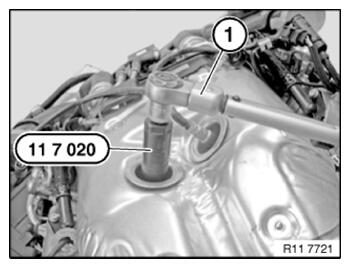

- Release the front oxygen sensor with the special tool 0 491 074 (11 7 020) and a reversible ratchet (1) .
