Installing the left Lambda oxygen sensor

NOTE: TECHNICAL INFORMATION
Grease the threads of new oxygen sensors thinly and evenly.
For oxygen sensors that are reused, the following should be observed:
Thinly and evenly grease the oxygen sensor on the thread only. Do not clean the part of the oxygen sensor that does not protrude into the exhaust line (sensor ceramics) and do not grease.
For additional information see: OVERVIEW OF CONSUMABLES (BMW PARTS CATALOGUE) .

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: TECHNICAL INFORMATION
For additional information see: OVERVIEW OF CONSUMABLES (BMW PARTS CATALOGUE) .

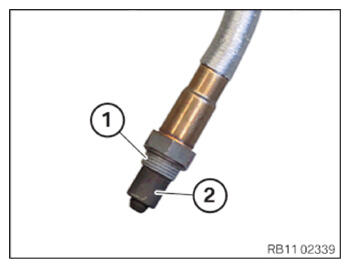

(1) = Thread
(2) = Sensor ceramics

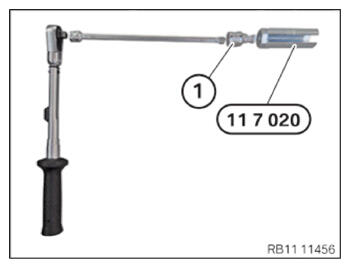

Prepare tools:
Connect swiveling extension (1) and special tool 0 491 074 (11 7 020) .

Courtesy of BMW OF NORTH AMERICA, INC.

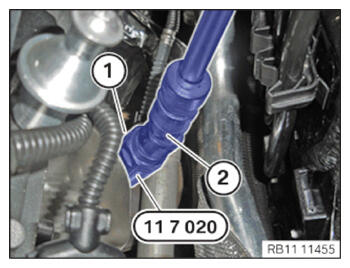

Screw in the Lambda oxygen sensor (1).
Tighten the Lambda oxygen sensor (1) with a swiveling extension (2) and the special tool 0 491 074 (11 7 020) .

TIGHTENING TORQUE SPECIFICATIONS

Lambda oxygen sensor on catalytic converter
M18X1.5	tightening torque	50 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

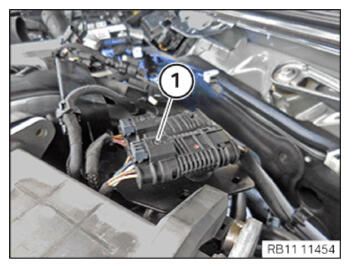

Connect connector (1) and clip in on carrier plate.

Courtesy of BMW OF NORTH AMERICA, INC.

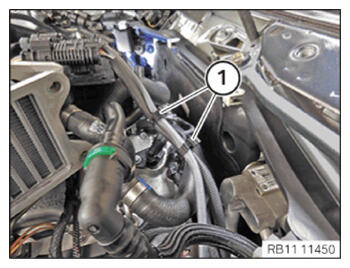

Connect cable with clips (1).

Courtesy of BMW OF NORTH AMERICA, INC.

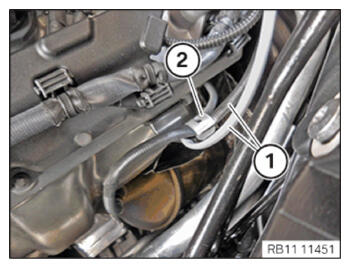

Attach the cable (1) in the clamp (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING CHARGE AIR PIPE ON LEFT .
Refer to INSTALLING TOP CLEAN AIR PIPE ON LEFT .
Refer to INSTALLING THE LEFT THROTTLE BODY .
Refer to INSTALLING THE CENTER COWL UPPER PART .
Refer to INSTALLING THE FRONT HOOD SEAL AT THE REAR .
Refer to INSTALLING TENSION STRUT ON SHOCK TOWER .
Refer to INSTALLING WINDSHIELD PANEL COVER .
Refer to INSTALLING THE COVER OF THE ENGINE COMPARTMENT ON THE REAR LEFT .
Refer to INSTALLING THE REAR RIGHT ENGINE COMPARTMENT COVER .
Refer to INSTALLING LEFT INTAKE SILENCER HOUSING .
Refer to INSTALLING ACOUSTIC COVER .
