Installing the screw plug on the cylinder head
NOTE:
TECHNICAL INFORMATION

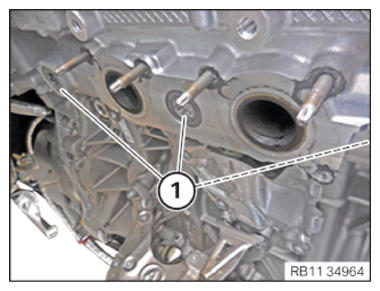

The brake cleaner must not get into the exhaust ports.
The brake cleaner must not get into the exhaust ports.
NOTE:
TECHNICAL INFORMATION
The sealing surface and the thread must be dry and free of grease and particulates.
The sealing surface and the thread must be dry and free of grease and particulates.

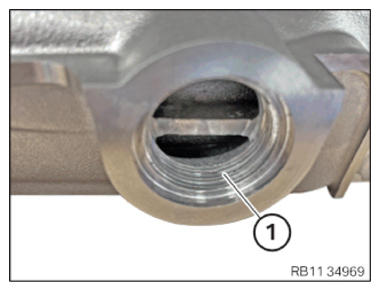

- Clean the thread (1) with the brake cleaner.
Consumable
| Brake cleaner 2.0 | 500 ml, Spray can | 83192365214 |
| 20, Canister | 83192365215 |
- Replace the screw plug (1) and the sealing ring (2) .
Parts: Screw plug, sealing ring
- Wet the screw plug (1)
in area (A)
with the screw locking agent.
Adhesive
Screw lock Loctite Stick 243, medium strength 10 ml, Bottle 83192210339 - Position the sealing ring (2)
correctly.
- Insert and install the screw plugs (1) .
- Tighten the screw plug (1) with a snug torque.
TIGHTENING TORQUE SPECIFICATIONS
| Screw plugs on cylinder head | ||
| M28X1.5 Replace the screw plugs. Wet the screw plugs with Loctite. (Loctite 243) |
tightening torque | 25 Nm |
- Remove the excess screw locking agent (1)
.
- Attach the mark (1) to the screw plug (2) .
- Attach the mark (3) to the cylinder head (4) .
- Tighten oil drain plug (1) .
TIGHTENING TORQUE SPECIFICATIONS
| Screw plug on cylinder head | ||
| M28X1.5 | Angle of rotation | 60° |
- The marks (1) and (2) must align.
Follow-up work
- Refer to PREPARING FOR THE INSTALLATION OF THE TURBOCHARGER .
- Refer to INSTALLING TURBOCHARGER .
- Refer to INSTALLING THE OIL RETURN LINE FOR THE TURBOCHARGER .
- Refer to INSTALLING CATALYTIC CONVERTER .
- Refer to INSTALLING THE COMPLETE EXHAUST SYSTEM .
- Refer to INSTALLING THE REAR DIFFUSER .
- Refer to INSTALLING THE REAR AXLE COVER .
- Refer to IF INSTALLED: INSTALLING THE TORSION STRUT ON THE RIGHT, AND ON THE LEFT WHERE REQUIRED .
- Refer to INSTALLING THE CONNECTING SUPPORTS ON THE TUNNEL .
- Refer to INSTALLING THE OXYGEN SENSOR MONITOR .
- Refer to INSTALLING LAMBDA OXYGEN SENSOR .
- Refer to INSTALLING THE COOLANT LINE BETWEEN THE CYLINDER HEAD AND THE COOLANT PUMP .
- Refer to INSTALLING THE DRIVE BELT FOR THE COOLANT PUMP .
- Refer to INSTALLING CHARGE AIR LINE .
- Refer to INSTALLING BOTTOM CLEAN AIR PIPE .
- Refer to INSTALLING THE RESONATOR WITH THE TOP CLEAN AIR PIPE .
- Refer to INSTALLING THE INTAKE FILTER HOUSING (TENSION STRUT REMOVED ON SHOCK TOWER) .
- Refer to INSTALLING FAN COWL .
- Refer to INSTALLING THE REAR TOP CROSS CONNECTION .
- Refer to INSTALLING FRONT CROSS CONNECTION (FRONT-END STRUT REMOVED) .
- Refer to INSTALLING BOTH FRONT-END STRUTS .
- Refer to INSTALLING THE COVER OF THE ENGINE COMPARTMENT CENTER .
- Refer to OBSERVING THE HARDENING TIME OF THE SCREW LOCKING AGENT ON THE SCREW PLUG .
- Refer to ACTIVATING HIGH-VOLTAGE SYSTEM .
- Refer to INSTALLING FLAP IN RIGHT LUGGAGE COMPARTMENT TRIM PANEL .
- Refer to FILLING AND VENTING THE HIGH-TEMPERATURE COOLANT CIRCUIT .
- Refer to CHECKING ENGINE OIL LEVEL .
- Refer to INSTALLING THE COVER OF THE STEERING ASSEMBLY .
- Refer to INSTALLING THE STIFFENING PLATE .
- Refer to INSTALLING FRONT STIFFENING PLATE .
- Refer to INSTALLING THE FRONT UNDERBODY PROTECTION OR FRONT THRUST FIELD .
- Refer to INSTALLING THE UNDERBODY PROTECTION OF THE STEERING GEAR OR THE FRONT THRUST FIELD .
- Refer to INSTALLING REAR UNDERBODY PROTECTION .
- Refer to INSTALLING ACOUSTIC COVER .
- Refer to TAKING HOOD OUT OF THE SERVICE POSITION .
