Remove catalytic converter
NOTE:
High-voltage system.
The high-voltage system operates on the basis of hazardous, electrical voltage and high currents. Mortal hazard through electric shock!
The high-voltage system operates on the basis of hazardous, electrical voltage and high currents. Mortal hazard through electric shock!
- All work on the high-voltage system may only be carried out by specially trained and technically experienced personnel.
- For additional information see:
- For additional information see:
WARNING:
Hot surfaces.
Risk of burning!
Risk of burning!
- Perform all work only on components that have cooled down.
Preliminary work
- Refer to REMOVING THE CONNECTING SUPPORT FROM THE TUNNEL .
- Refer to IF INSTALLED: REMOVING THE TORSION STRUT ON THE RIGHT AND LEFT WHERE REQUIRED .
- Refer to REMOVING THE REAR AXLE COVER .
- Refer to REMOVING THE REAR DIFFUSER .
- Refer to REMOVING REAR UNDERBODY PROTECTION .
- Refer to REMOVING COMPLETE EXHAUST SYSTEM .
- Refer to REMOVING THE ACOUSTIC COVER .
- Refer to REMOVING INTAKE SILENCER HOUSING .
- Refer to REMOVING THE RESONATOR WITH THE TOP CLEAN AIR PIPE .
- Refer to REMOVING THE HOLDER OF THE POSITIVE BATTERY CABLE .
- Refer to REMOVING THE LAMBDA OXYGEN SENSOR .
- Refer to REMOVING THE OXYGEN SENSOR MONITOR .
WARNING:
Hot surfaces.
Risk of burning!
Risk of burning!
- Perform all work only on components that have cooled down.
CAUTION:
Heavy component.
Heavy components can lead to injury or damage.
Heavy components can lead to injury or damage.
- Remove and install heavy components with the aid of another person/other persons.
CAUTION:
Component with heavy weight.
Injury hazard!
Injury hazard!
- Note component's center of gravity.
- Support component using a jack.
- Secure component against falling off the jack.
- Removing the thrust field (all-wheel drive vehicle)
NOTE:
TECHNICAL INFORMATION
Driving without thrust field is not permissible.
Driving without thrust field is not permissible.
NOTE:
To provide a better overview: Schematic diagram with partially hidden components.
- Remove screws (arrows).
- Feed out the front underbody protection (1)
.NOTE: The following step(s) must be performed if the listed component(s) is/are installed.
- Release the screws (2) to (4) .
- Remove the thrust field (1)
.
- Release all bolts (arrows).
- Guide out the underbody protection (1)
of the steering gear.NOTE: The following step(s) must be performed if the listed component(s) is/are installed.
- Loosen screws (3) .
- Loosen screws (2) .
- Remove the front thrust field (1)
.
- Version A:
Release screws (3) and (4) .
Loosen screws (2) .
Remove the thrust field (1) .
- Version B:
Release screws (3) and (4) .
Loosen screws (2) .
Remove the thrust field (1) .
NOTE: The following step(s) must be performed if the listed component(s) is/are installed. - Detach pressure hose.

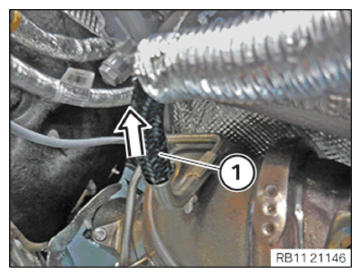

- Pull off the pressure hose (1)
in arrow direction and set it aside.
- Loosen V-band clamp (1)
.
- Loosen nuts (1)
.
- Unlock and loosen clamp (1) .
- Feed out catalytic converter and remove.
