Install catalytic converter

Replace the V-clip (1) .
Parts: V-band clamp

Courtesy of BMW OF NORTH AMERICA, INC.
Replace the seal (1) .
Parts: Gasket

Courtesy of BMW OF NORTH AMERICA, INC.

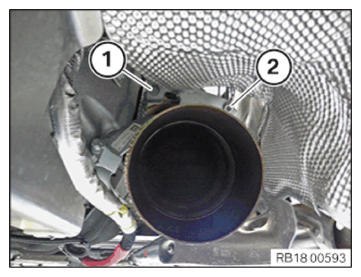

Feed in and install catalytic converter (3) .
Replace the V-clip (2) .
Parts: V-band clamp
Feed in and install V-band clamp (2).
Position the bolt (1) .

Courtesy of BMW OF NORTH AMERICA, INC.
Replace the screw (1) .
Parts: Screw
Position the bolt (1) .
Replace nut (2) .
Parts: Nut
Position the nut (2) .

Courtesy of BMW OF NORTH AMERICA, INC.
Position the catalytic converter (3) .
Position V-clip (2) .
NOTE: Make sure the V-ribbon clip is installed in the correct position.

Tighten down screw (1) .

Courtesy of BMW OF NORTH AMERICA, INC.

TIGHTENING TORQUE SPECIFICATIONS

Catalytic converter/gasoline particulate filter to exhaust turbocharger
V-band clamp Replace V-band clamp.	Tightening torque	13 Nm

Tighten down screw (1) .

Courtesy of BMW OF NORTH AMERICA, INC.

TIGHTENING TORQUE SPECIFICATIONS

Catalytic converter to holder
M8 Replace screw.	Tightening torque	19 Nm

Tighten nut (2) .

TIGHTENING TORQUE SPECIFICATIONS

Catalytic converter to holder
M8 Replace nut.	Tightening torque	19 Nm

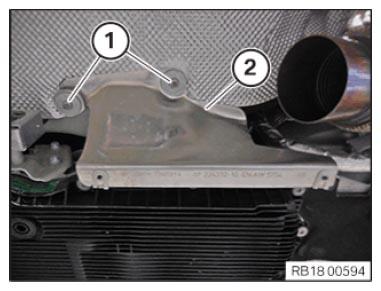

Tighten nuts (1) .

TIGHTENING TORQUE SPECIFICATIONS

Heat shield to body
Nut	Tightening torque	3 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work
