Draining coolant
WARNING:
Hot fluids.
Risk of scalding!
Risk of scalding!
- Conduct all work in the vehicle wearing appropriate personal protective equipment only.
CAUTION:
Materials harmful to health.
Contact with fluids harmful to health!
Contact with fluids harmful to health!
- Note and follow safety instructions on containers.
- Conduct all work in appropriate personal protective equipment only.
NOTE:
TECHNICAL INFORMATION
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.
- Open the lid (1) on the coolant expansion tank.

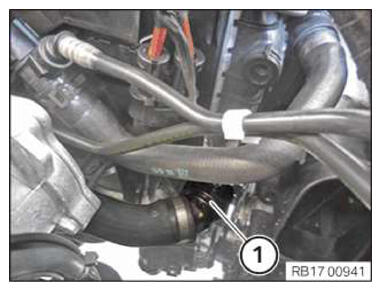

- Unlock the coolant hose (1) and detach it off the radiator.
- Catch and dispose of leakage coolant.
Follow-up work
- Refer to INSTALLING RIGHT AIR DUCT .
- Refer to INSTALLING RIGHT INTAKE SILENCER HOUSING .
- Refer to INSTALLING THE CENTER TOP CROSS CONNECTION .
- Refer to INSTALLING THE COVER OF THE ENGINE COMPARTMENT CENTER .
- Refer to INSTALLING THE STIFFENING PLATE .
- Refer to INSTALLING THE UNDERBODY PROTECTION OF THE STEERING GEAR OR THE FRONT THRUST FIELD .
- Refer to INSTALLING THE FRONT UNDERBODY PROTECTION OR FRONT THRUST FIELD .
- Refer to FILLING THE COOLING SYSTEM WITH THE VACUUM FILLING UNIT .
- Refer to VENTING THE HIGH-TEMPERATURE COOLANT SYSTEM .
- Refer to INSTALLING ACOUSTIC COVER .
