Partially Removing The Fuel Filler Pipe
CAUTION:
Materials harmful to health.
Contact with fluids harmful to health!
Contact with fluids harmful to health!
- Note and follow safety instructions on containers.
- Conduct all work in appropriate personal protective equipment only.
NOTE:
TECHNICAL INFORMATION
Use only lint-free cloths for cleaning the SCR system: WAYPALL cleaning cloths L20 - see BMW Group parts sales.
Use only lint-free cloths for cleaning the SCR system: WAYPALL cleaning cloths L20 - see BMW Group parts sales.
NOTE:
TECHNICAL INFORMATION
After repair work, clean the working area thoroughly with water.
Clean special tools with water after every use.
After repair work, clean the working area thoroughly with water.
Clean special tools with water after every use.
Preliminary work
- Refer to REMOVING THE LUGGAGE COMPARTMENT FLOOR COVERING .
- Refer to REMOVING THE STORAGE TRAY .
- Refer to REMOVE THE STORAGE TRAY FOR THE COMPACT SPARE WHEEL .
- Refer to REMOVING THE LOADING EDGE TRIM .
- Refer to REMOVING RIGHT LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL .
- Refer to REMOVE FLAP FOR FUEL FILLER NECK .
- Refer to REMOVING THE REAR RIGHT WHEEL .
- Refer to REMOVE RIGHT REAR WHEEL ARCH COVER .

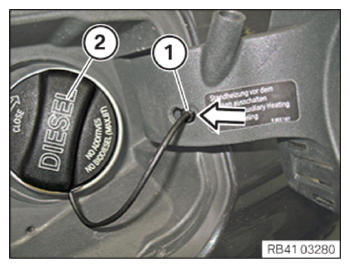

- Detach the retaining strap (1) in the direction of the arrow.
- Remove gas cap (2).

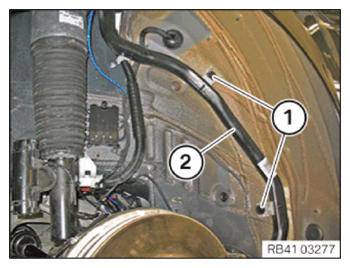

- Loosen nuts (1).
- Detach the fuel filler pipe (2) from the coarse thread bolt.

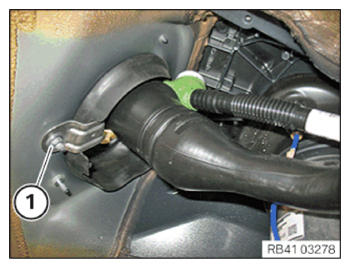

- Unfasten nut (1).

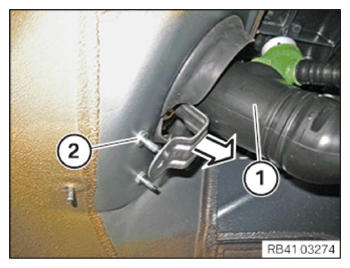

- Detach the fuel filler pipe (1) from the threaded bolt (2) in the arrow direction.
