Install the tailgate function module (HKFM)

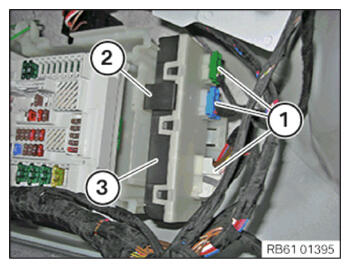

• Guide in the tailgate function module (HKFM) (3).
• Connect connector (1).
• Check the detent (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL ON THE RIGHT .
• Refer to INSTALLING LOADING EDGE TRIM .
• Refer to ENCODING/PROGRAMING CONTROL UNIT(S) .
