Remove the rear seat module (SMFAH/SMBFH)

Precondition

• Left rear seat removed

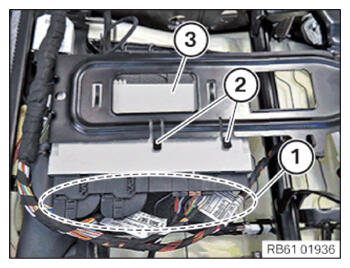

• Unlock and disconnect connector (1).
• Unlock the retaining lugs (2).
• Pull the seat module (3) out of the holder toward the front.
