61 35 018 Removing and installing the control electronics for Near Field Communication
>>
Installing control electronics for Near Field Communication
Installing control electronics for Near Field Communication

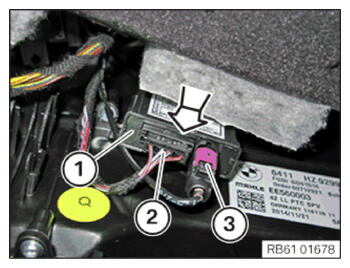

Install control electronics (1) in the direction of the arrow.
Connect connectors (2) and lock.
Connect connectors (3) and lock.
Courtesy of BMW OF NORTH AMERICA, INC.
Follow-up work
Refer to
INSTALLING THE FOOTWELL TRIM PANEL ON THE RIGHT
.
