Installing the trailer module (AHM)

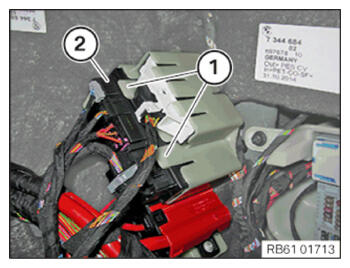

• Connect all connectors (1) to the towing module (AHM) (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

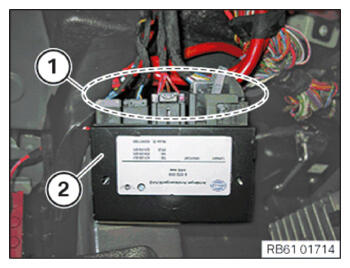

• Position the trailer module (AHM) (2) in the holder.
• Check the detents (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL ON THE RIGHT .
• Refer to INSTALLING LOADING EDGE TRIM .
• Refer to INSTALLING THE COMPACT SPARE WHEEL STORAGE TRAY .
• Refer to INSTALLING THE STORAGE TRAY .
