Installing the switch combination of the additional seat function (rear)

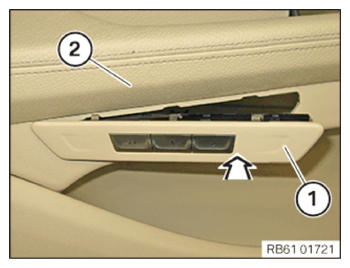

• Press the switch combination with the trim (1) into the door trim panel (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Check the switch combination (2) for the correct detent of the clamps in the marked areas.
• Check detent (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING REAR DOOR TRIM PANEL .
