Installing radio operating unit and air conditioning control panel

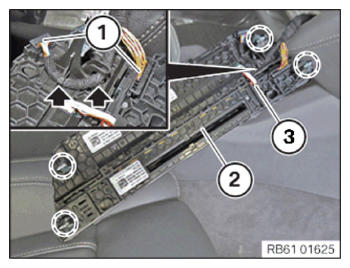

• Connect connector (1) with the radio operating unit and the air conditioning control panel (2).
• Insert the cable (arrows).

  Courtesy of BMW OF NORTH AMERICA, INC.

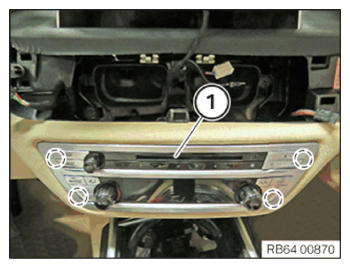

• Clip in radio operating unit and air conditioning control panel (1) in the instrument panel trim.

  Courtesy of BMW OF NORTH AMERICA, INC.

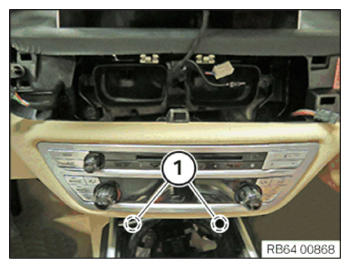

• If installed:

Tighten both screws (1) at the bottom.

Courtesy of BMW OF NORTH AMERICA, INC.

Install the center stack trim

• Check the detents and guides on the center stack trim (1).
• Clip in the center stack trim (1) in upward direction.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE DECORATIVE STRIP ON THE RIGHT DASHBOARD .
• Refer to INSTALLING THE FRONT STORAGE COMPARTMENT .
