84 31 551 Removing and installing/replacing microphone on the passenger's side (after vehicle diagnosis) (all 7' series models 2016-2022)
>>
Installing the right hands-free microphone
Installing the right hands-free microphone

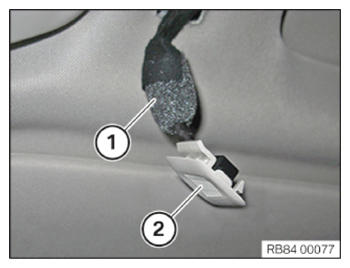

Connect the connector to the hands-free microphone (2).
Close the insulation (1).
Courtesy of BMW OF NORTH AMERICA, INC.

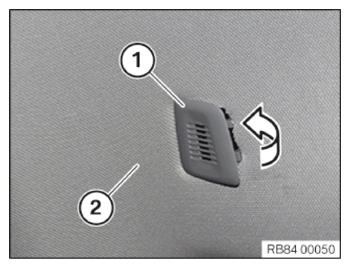

Position hands-free microphone (1) in headlining (2) in the direction of the arrow.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
